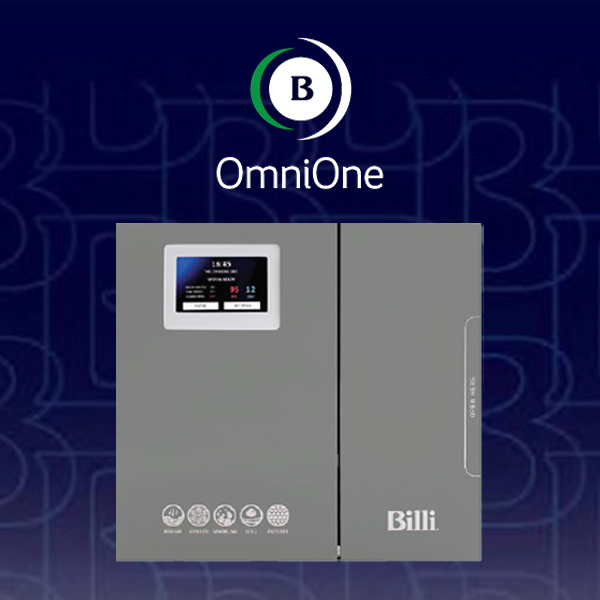

The OmniOne Pro60 is the latest iteration of multifunction filtered drinking water appliances from Billi.
The intersection of genuine innovation and sustainable design, OmniOne integrates Billi’s renowned water-cooling and energy reclaim technologies into a single space-saving under bench control module.
With a 30% uplift in performance, whisper quiet in operation, ergonomic and acutely focused on the wellness & hygiene of it’s users, the OmniOne Pro60 range is the ultimate inclusion to the modern workplace or facility.
Features
Product Specification
| Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Product Code | Model Name | Capacity (no. of pax) | Boiling Water Recovery Rate (cups/hour) | Chilled & Sparkling Water Recovery Rate (cups/hour) | Height (mm) | Width (mm) | Depth (mm) |
| 926060 | OmniOne Pro60 | up to 60 pax | 180 cups/hour | 220 cups/hour | 355 | 395 | 495 |
Available Dispenser Type
| Available Dispenser Type | Code |
|---|---|
| XL Levered Dispenser | L |
Optional Accessories
| Optional Accessories | Code |
|---|---|
| XI Font & 120mm Dispenser Riser | 992803 |
Available Finish
| Available Finish | Code |
|---|---|
| Chrome | CH |
| Brushed | BR |
| Matte White | MW |
| Matte Black | MB |
Installation Requirements
| Power Supply: | 13amp power point to be provided in the cabinet and no further than 1m from the underbench unit. |
| Water Supply: | A single 1/2" miniball valve (male) to be provided in the cabinet with a minimum dynamic water pressure of 250kPa and a maximum of 1000kPa. |
| Drainage Point: | A 40mm diameter waste water pipe to be provided in the cabinet for drainage of waste water. |
| Table Top Cut-out: | |
| With Font | 174mm(W) x 274mm(D) cut-out to be provided. |
| Without Font | 35mm diameter hole cut-out to be provided. Distant between center of hole to edge of sink is 50mm. |
| Minimum Cabinet Space: | 560mm(H) x 700mm(W) x 550mm(D) to be provided. |
