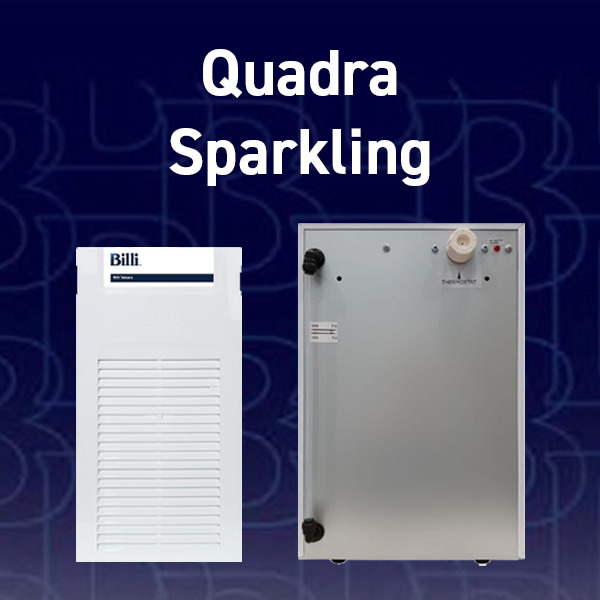

Quadra Sparkling - Boiling, Chilled & Sparkling
Quadra Sparkling - Boiling, Chilled & Sparkling
Boiling
Chilled
Sparkling
Overview
Overview
The Quadra Sparkling is the ultimate drinking water appliance. Delivering instant boiling and chilled filtered water, with the added sparkling filtered water feature. All options are conveniently available through the one stylish dispenser.
Features
Product Specification
| Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Product Code | Model Name | Capacity (no. of pax) | Boiling Water Recovery Rate (cups/hour) | Chilled & Sparkling Water Recovery Rate (cups/hour) | Height (mm) | Width (mm) | Depth (mm) |
| 906060 | Quadra Sparkling 460 | up to 60 pax | 180 cups/hour | 200 cups/hour | B: 340 C: 410 |
B: 180 C: 255 |
B: 465 C: 420 |
| 906100 | Quadra Sparkling 4100 | up to 100 pax | 250 cups/hour | 200 cups/hour | B: 340 C: 410 |
B: 180 C: 255 |
B: 465 C: 420 |
Available Dispenser Type
| Available Dispenser Type | Code |
|---|---|
| XL Levered Dispenser | L |
Optional Accessories
| Optional Accessories | Code |
|---|---|
| XI Font & 120mm Dispenser Riser | 992803 |
Available Finish
| Available Finish | Code |
|---|---|
| Chrome | CH |
| Brushed | BR |
| Matte White | MW |
| Matte Black | MB |
Installation Requirements
| Power Supply: | |
|---|---|
| Quadra Sparkling 460: | 13amp x 3 power points to be provided in the cabinet and no further than 1m from the underbench unit. |
| Quadra Sparkling 4100: | 15amp x 1 & 13amp x 2 power points to be provided in the cabinet and no further than 1m from the underbench unit. |
| Water Supply: | A single 1/2" miniball valve (male) to be provided in the cabinet with a minimum dynamic water pressure of 250kPa and a maximum of 1000kPa. |
| Drainage Point: | A 40mm diameter waste water pipe to be provided in the cabinet for drainage of waste water. |
| Table Top Cut-out: | |
| With Font | 174mm(W) x 274mm(D) cut-out to be provided. |
| Without Font | 35mm diameter hole cut-out to be provided. Distant between center of hole to edge of sink is 50mm. |
| Minimum Cabinet Space: | 560mm(H) x 800mm(W) x 550mm(D) to be provided. |
| Air ventilation: | Required. Please contact us for more information. |
