Alpine Sparkling - Chilled & Sparkling
Alpine Sparkling - Chilled & Sparkling
Chilled
Sparkling
Overview
Overview

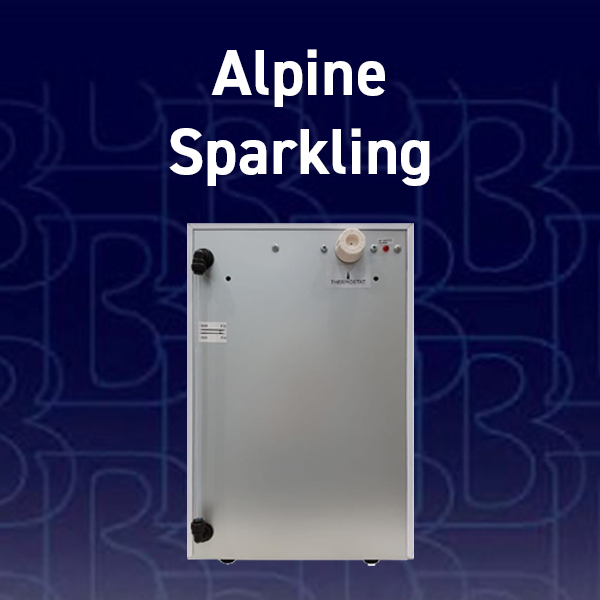

The Alpine Sparkling delivers instant chilled and sparkling making it the perfect addition to any kitchen or refreshment area.
The dual levered slimline dispenser is streamlined and elegant with round design and dual lever operation.
Product Specification
| Dimensions | ||||||
|---|---|---|---|---|---|---|
| Product Code | Model Name | Capacity (no. of pax) | Chilled & Sparkling Water Recovery Rate (cups/hour) | Height (mm) | Width (mm) | Depth (mm) |
| 933200 | Alpine Sparkling 200 | up to 80 pax | 200 cups/hour | 410 | 255 | 420 |
Available Dispenser Type
| Available Dispenser Type | Code |
|---|---|
| Dual Slimline Dispenser | D |
Optional Accessories
| Optional Accessories | Code |
|---|---|
| XI Slimline Font | 992810 |
Available Finish
| Available Finish | Code |
|---|---|

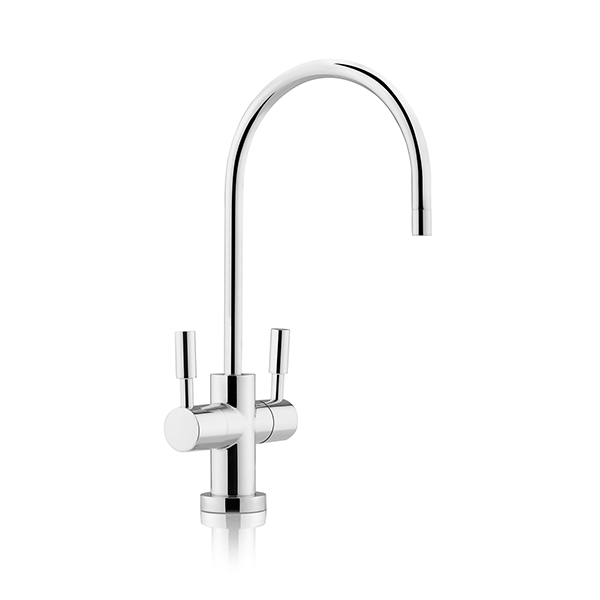

| Chrome | CH |

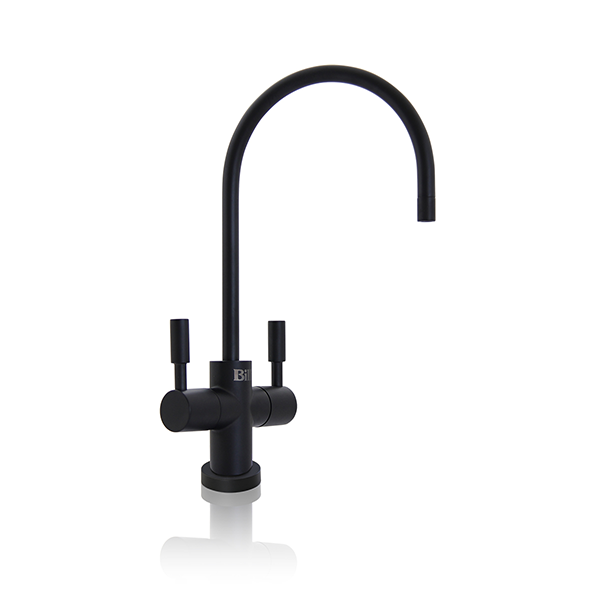

| Matte Black | MB |
Installation Requirements
| Power Supply: | 13amp power point to be provided in the cabinet and no further than 1m from the underbench unit. |
| Water Supply: | A single 1/2" miniball valve (male) to be provided in the cabinet with a minimum dynamic water pressure of 250kPa and a maximum of 1000kPa. |
| Drainage Point: | A 40mm diameter waste water pipe to be provided in the cabinet for drainage of waste water. |
| Table Top Cut-out: | |
| With Font | 174mm(W) x 274mm(D) cut-out to be provided. |
| Without Font | 22mm diameter hole cut-out to be provided. Distant between center of hole to edge of sink is 50mm. |
| Minimum Cabinet Space: | 560mm(H) x 500mm(W) x 550mm(D) to be provided. | Air ventilation: | Required. Please contact us for more information. |
