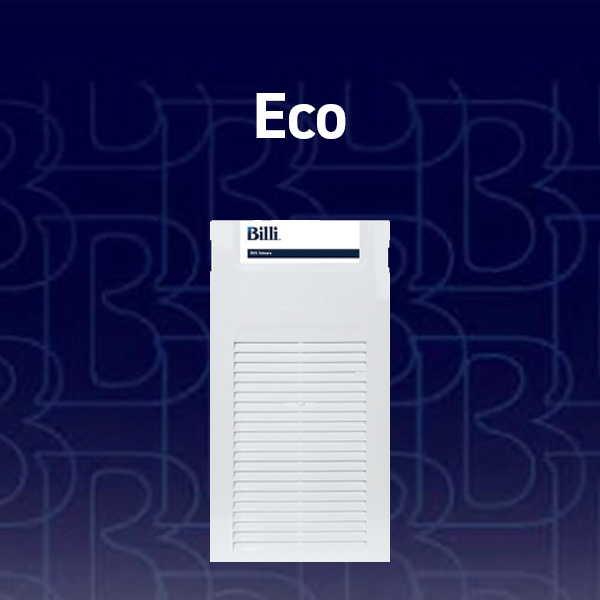

Eco - Boiling & Chilled
Eco - Boiling & Chilled
Boiling
Chilled
Overview
Overview
Leading the range the Eco boiling and chilled drinking water system is space saving, energy efficient and elegant. The functional style is designed for high use and meets green building design principles – providing you with the ultimate in environmentally sensitive appliances.
Features
Product Specification
| Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Product Code | Model Name | Capacity (no. of pax) | Boiling Water Recovery Rate (cups/hour) | Chilled Water Recovery Rate (cups/hour) | Height (mm) | Width (mm) | Depth (mm) |
| 901000 | Eco | up to 10 pax | 90 cups/hour | 60 cups/hour | 340 | 180 | 500 |
Available Dispenser Type
| Available Dispenser Type | Code |
|---|---|
| XL Levered Dispenser | L |
| XT Touch Dispenser | T |
Optional Accessories
| Optional Accessories | Code |
|---|---|
| XI Font & 120mm Dispenser Riser | 992803 |
Available Finish
| Available Finish | Code |
|---|---|
| Chrome | CH |
| Brushed | BR |
| Matte White | MW |
| Matte Black | MB |
Installation Requirements
| Power Supply: | 13amp power point to be provided in the cabinet and no further than 1m from the underbench unit. |
| Water Supply: | A single 1/2" miniball valve (male) to be provided in the cabinet with a minimum dynamic water pressure of 250kPa and a maximum of 1000kPa. |
| Drainage Point: | A 40mm diameter waste water pipe to be provided in the cabinet for drainage of waste water. |
| Table Top Cut-out: | |
| With Font | 174mm(W) x 274mm(D) cut-out to be provided. |
| Without Font | 35mm diameter hole cut-out to be provided. Distant between center of hole to edge of sink is 50mm. |
| Minimum Cabinet Space: | 560mm(H) x 420mm(W) x 550mm(D) to be provided. |
| Air ventilation: | Required. Please contact us for more information. |
