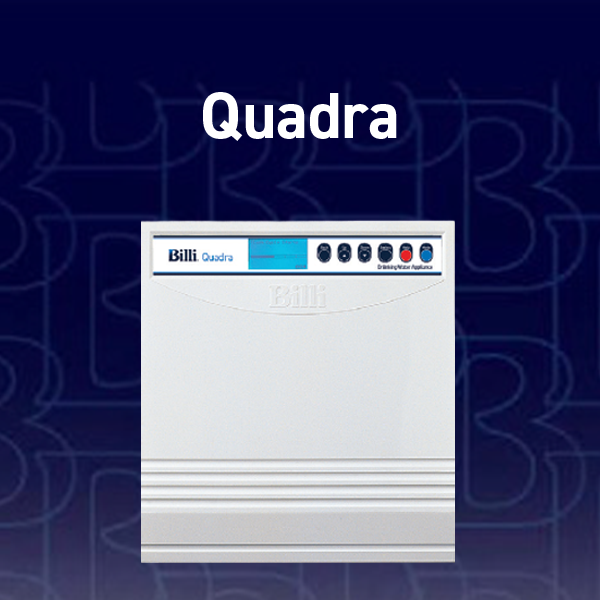

Quadra - Boiling & Chilled

Name: Quadra - Boiling & Chilled
Brand: Eldric Marketing
Availability: OutOfStock

Boiling

Chilled

Overview

The Quadra Boiling and Chilled drinking water system is water cooled, high capacity, large population commercial drinking water solution that maintains the core Billi design principles and requires no joinery ventilation.

The drawcard for the entire Quadra range is the use of innovative energy reclaim technology which enables space savings, energy efficiency and completely eliminates exhaust heat transfer.

All Quadra boiling and chilled products are Global GreenTag certified to a Gold standard.

Features

Energy Efficient

No Cupboard Ventilation Required

Range of Finishes

Safe To Operate

Space Saving Design

Splashfree Delivery

Australian Designed & Made

Product Specification

					Dimensions
Product Code	Model Name	Capacity (no. of pax)	Boiling Water Recovery Rate (cups/hour)	Chilled Water Recovery Rate (cups/hour)	Height (mm)	Width (mm)	Depth (mm)
904010	Quadra Compact	up to 20 pax	100 cups/hour	150 cups/hour	340	315	365

Available Dispenser Type

Available Dispenser Type	Code
XL Levered Dispenser	L
XT Touch Dispenser	T

Optional Accessories

Optional Accessories	Code
XI Font & 120mm Dispenser Riser	992803

Available Finish

Available Finish	Code
Chrome	CH
Brushed	BR
Matte White	MW
Matte Black	MB

Installation Requirements

Table Top Cut-out:
Power Supply:	13amp power point to be provided in the cabinet and no further than 1m from the underbench unit.
Water Supply:	A single 1/2" miniball valve (male) to be provided in the cabinet with a minimum dynamic water pressure of 250kPa and a maximum of 1000kPa.
Drainage Point:	A 40mm diameter waste water pipe to be provided in the cabinet for drainage of waste water.
With Font	174mm(W) x 274mm(D) cut-out to be provided.
Without Font	35mm diameter hole cut-out to be provided. Distant between center of hole to edge of sink is 50mm.
Minimum Cabinet Space:	560mm(H) x 420mm(W) x 550mm(D) to be provided.
