Chilled
Alpine - Chilled
Alpine - Chilled
Chilled
Overview
Overview
Billi’s Alpine offers a premium filtered drinking water experience to account for all preferences.
Enjoy refreshing chilled filtered water.
Features
Product Specification
| Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Product Code | Model Name | Capacity (no. of pax) | Chilled Water Recovery Rate (cups/hour) | Still Water Recovery Rate (cups/hour) | Height (mm) | Width (mm) | Depth (mm) |
| 932120 | Alpine 120 | up to 40 pax | 120 cups/hour | not available | 340 | 180 | 460 |
Available Dispenser Type
| Available Dispenser Type | Code |
|---|---|

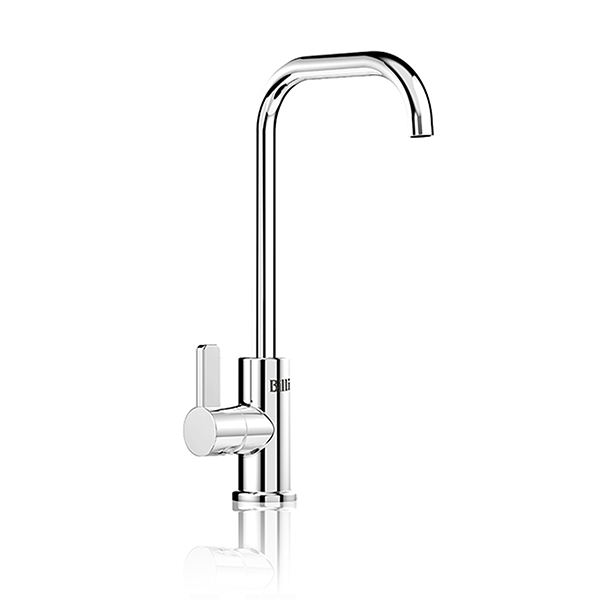

| Round Slimline Dispenser | R | Square Slimline Dispenser | S |
Optional Accessories
| Optional Accessories | Code |
|---|---|
| XI Slimline Font | 992810 |
Available Finish
| Available Finish | Code |
|---|---|
| Chrome | CH |
Installation Requirements
| Power Supply: | 13amp power point to be provided in the cabinet and no further than 1m from the underbench unit. |
| Water Supply: | A single 1/2" miniball valve (male) to be provided in the cabinet with a minimum dynamic water pressure of 250kPa and a maximum of 1000kPa. |
| Drainage Point: | A 40mm diameter waste water pipe to be provided in the cabinet for drainage of waste water. |
| Table Top Cut-out: | |
| With Font | 174mm(W) x 274mm(D) cut-out to be provided. |
| Without Font | 22mm diameter hole cut-out to be provided. Distant between center of hole to edge of sink is 50mm. |
| Minimum Cabinet Space: | 560mm(H) x 420mm(W) x 550mm(D) to be provided. |
