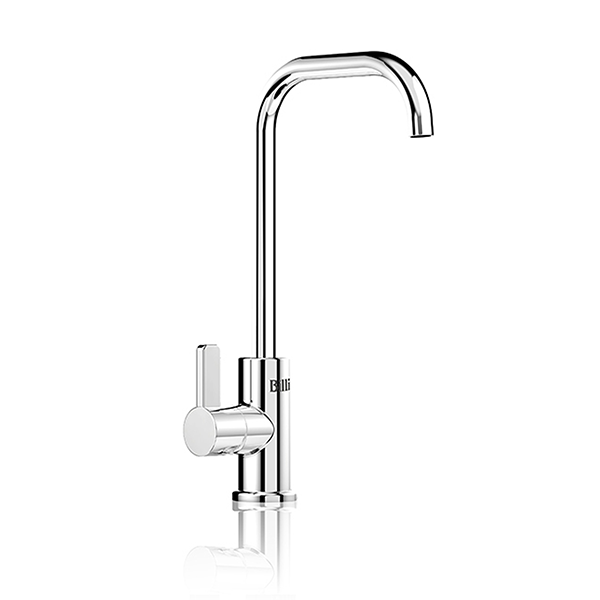

Filter Tap - Still
Filter Tap - Still
Still
Overview
Overview
The Billi Filter Tap offers the convenience of filtered still drinking water along with elegant functional design.
Features
Product Specification
| Dimensions | ||||||
|---|---|---|---|---|---|---|
| Product Code | Model Name | Capacity (no. of pax) | Ambient Water Recovery Rate (cups/hour) | Height (mm) | Width (mm) | Depth (mm) |
| 932210 | Filter Tap (5 micron) |
unlimited | unlimited | 340 | 115 | 125 |
Available Dispenser Type
| Available Dispenser Type | Code |
|---|---|

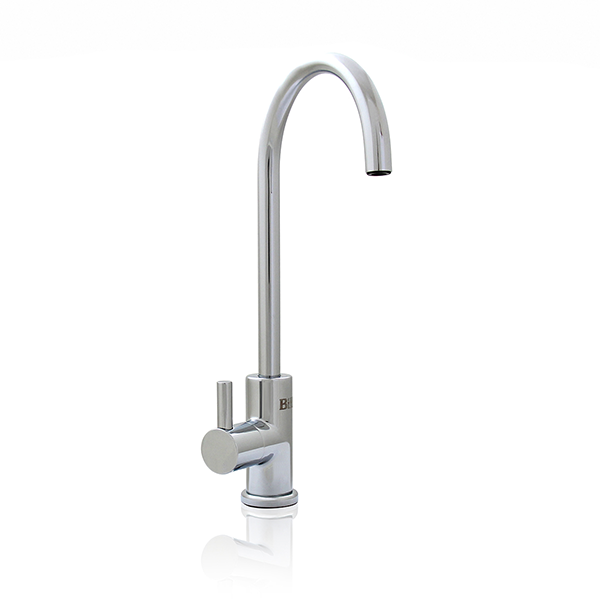

| Round Slimline Dispenser | R |
| Square Slimline Dispenser | S |
| Extended Square Slimline Dispenser | E |
Optional Accessories
| Optional Accessories | Code |
|---|---|
| XI Slimline Font | 992810 |
Available Finish
| Available Finish | Code |
|---|---|
| Chrome | CH |
| Matte Black | MB |
Installation Requirements
| Water Supply: | A single 1/2" miniball valve (male) to be provided in the cabinet with a minimum dynamic water pressure of 250kPa and a maximum of 1000kPa. |
| Drainage Point: | A 40mm diameter waste water pipe to be provided in the cabinet for drainage of waste water. |
| Table Top Cut-out: | |
| With Font | 174mm(W) x 274mm(D) cut-out to be provided. |
| Without Font | 22mm diameter hole cut-out to be provided. Distant between center of hole to edge of sink is 50mm. |
Downloads
Billi Brochure
Billi Brochure
Data Sheet
Data Sheet
Installation Guide
Installation Guide
User Guide
User Guide
