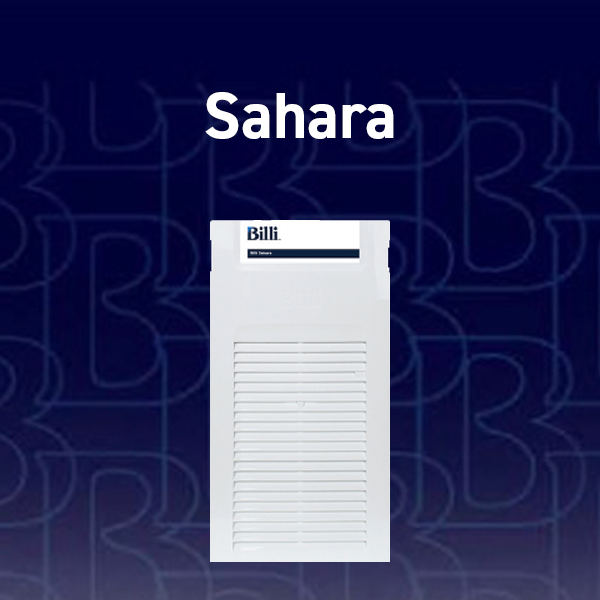

Sahara - Boiling & Still

Name: Sahara - Boiling & Still
Brand: Eldric Marketing
Availability: OutOfStock

Boiling

Still

Overview

The Sahara offers exceptional convenience and is ideal for making hot beverages and having unlimited still filtered water at your fingertips.

					Dimensions
Product Code	Model Name	Capacity (no. of pax)	Boiling Water Recovery Rate (cups/hour)	Still Water Recovery Rate (cups/hour)	Height (mm)	Width (mm)	Depth (mm)
903020	Sahara 320	up to 20 pax	100 cups/hour	unlimited	340	180	460
903060	Sahara 360	up to 60 pax	180 cups/hour	unlimited	340	180	460
903120	Sahara 3120	up to 120 pax	250 cups/hour	unlimited	340	180	460

Available Dispenser Type	Code
XL Levered Dispenser	L

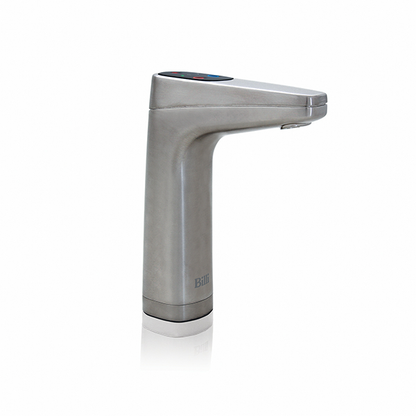

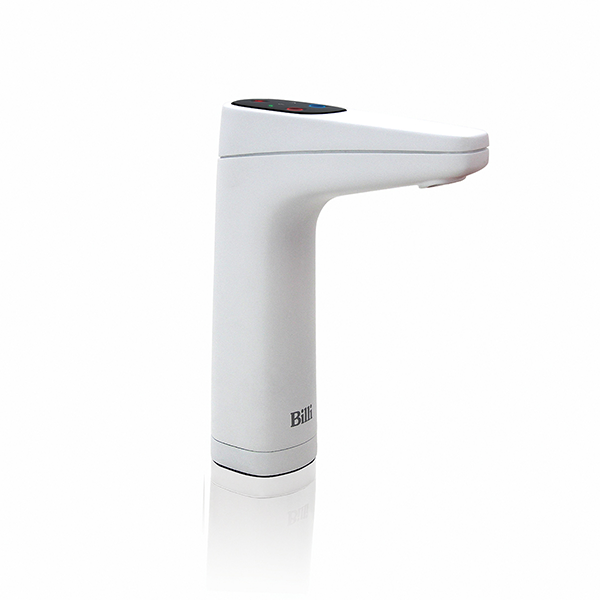

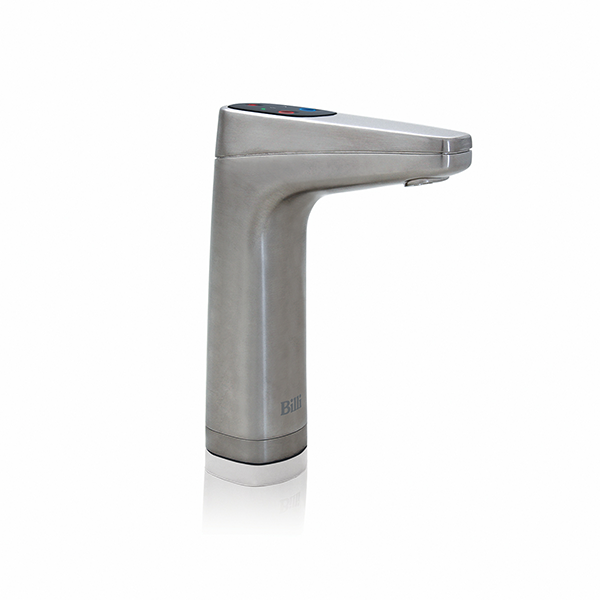

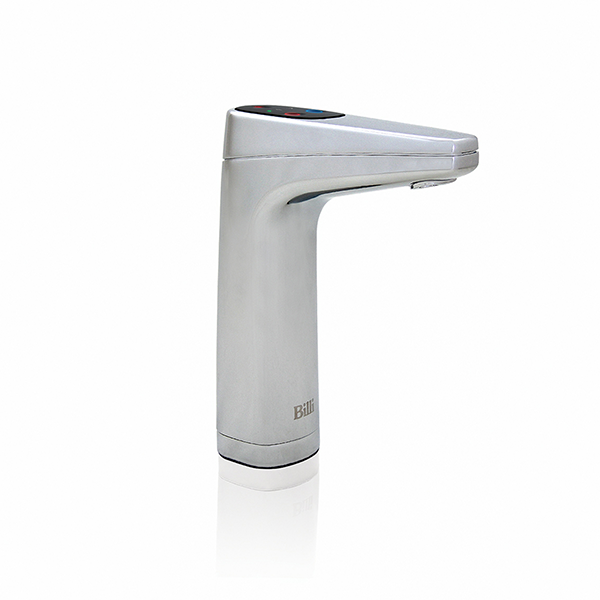

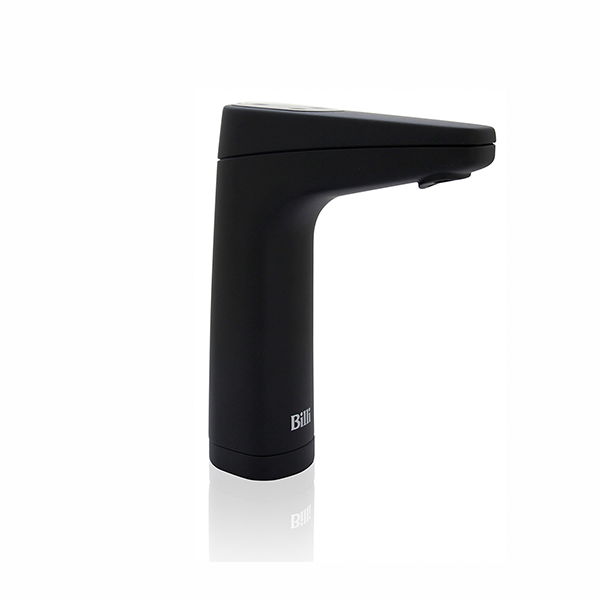

XT Touch Dispenser	T

Optional Accessories	Code
XI Font & 120mm Dispenser Riser	992803

Power Supply:
Sahara 320	13amp power point to be provided in the cabinet and no further than 1m from the underbench unit.
Sahara 360	13amp power point to be provided in the cabinet and no further than 1m from the underbench unit.
Sahara 3120	15amp power supply to be provided in the cabinet and no further than 1m from the underbench unit.
Water Supply:	A single 1/2" miniball valve (male) to be provided in the cabinet with a minimum dynamic water pressure of 250kPa and a maximum of 1000kPa.
Drainage Point:	A 40mm diameter waste water pipe to be provided in the cabinet for drainage of waste water.
Table Top Cut-out:
With Font	174mm(W) x 274mm(D) cut-out to be provided.
Without Font	35mm diameter hole cut-out to be provided. Distant between center of hole to edge of sink is 50mm.
Minimum Cabinet Space:	560mm(H) x 420mm(W) x 550mm(D) to be provided.
